Conical Ribbon Mixer

The Conical Ribbon Mixer combines advanced engineering with traditional design to provide efficient, gentle mixing for a wide range of industries. With customizable options and a wide range of sizes, it is the ideal solution for your mixing needs.

✔ Save space
✔ For customers who must use conical cylindrical bodies, the second choice
✔ Sealing structure similar to GPH, not prone to oil leakage
✔ Lower cost compared to GPH
✔ An upgrade of a dynamic hopper with mixing functionality

Product Application

Conical Ribbon Mixers are versatile and suitable for a variety of applications, including:

Chemical Manufacturing: Effectively mix various chemical compounds to improve product uniformity and performance.

New Materials Development: Promote the blending of advanced materials and support innovation in product development.

Engineering Company: Providing reliable mixing solutions for various engineering applications, ensuring precision and efficiency.

Standard Technical Data (LDSH)

Total Volume	Capacity per batch	Motor power (KW)	Shaft Speed (rpm)
100L	40-60L	3	85
500L	200-300L	7.5	60
1000L	400-600L	11	45
2000L	800-1200L	15	35
5000L	2000-3000L	37	23
10000L	4000-6000L	37	20
20000L	8000-12000L	55	17

Application Scenarios

Advanced Bearing Design

Innovative bearing design enhances the performance of the agitator, ensuring smooth operation and reducing maintenance requirements.

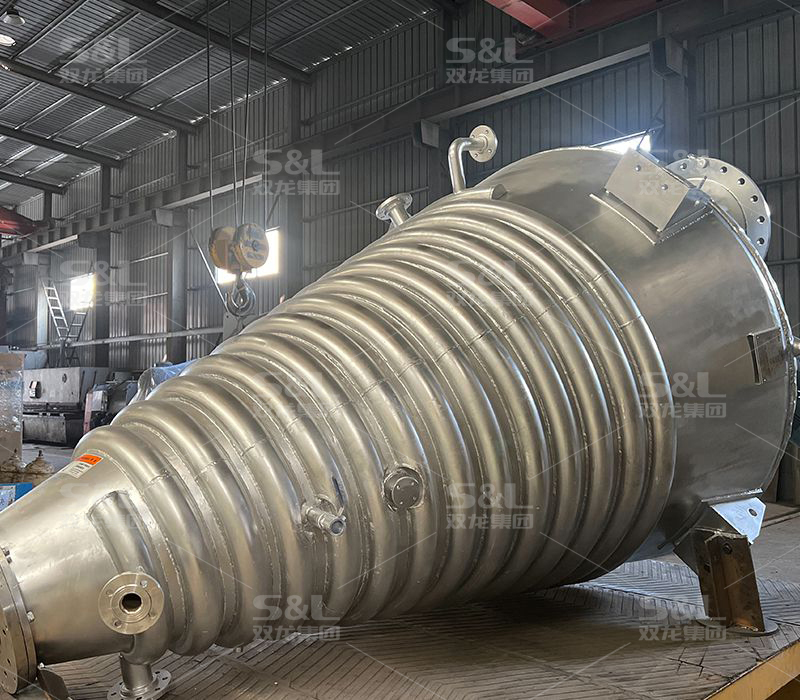

Customizable Jacket Options

Different jacket configurations are available, allowing for temperature control during the mixing process, which is critical for certain applications.
Upgrade Of Traditional Screw Mixers

Conical ribbon mixers represent an evolution of traditional screw mixers, using modern technology to improve efficiency and effectiveness.
Wide Range Of Sizes

Conical ribbon mixers are available in a variety of sizes to suit different production scales, from small batches to large-scale operations.

Distinctive Qualities

The mixer has an external cooling jacket that uses cooling water or nitrogen gas circulation to lower the temperature of the materials, and the shaft is sealed off from the air. To guarantee residue-free outflow, a globe valve is fastened to the bottom of the mixing machine.

Applications

Chemical industry: combining coatings, chemical powders, metallurgical powders, and pigments

In the food and beverage industries, combining food additives

Fertilizer combination in the agricultural industry

Relevant Sources

The S&L conical ribbon mixer can be used to mix powders and powders, particles and powders, and powders with small amounts of liquid additives.

Additional Features

Jacket for the mixer's internal pressure or vacuum, heating or cooling.

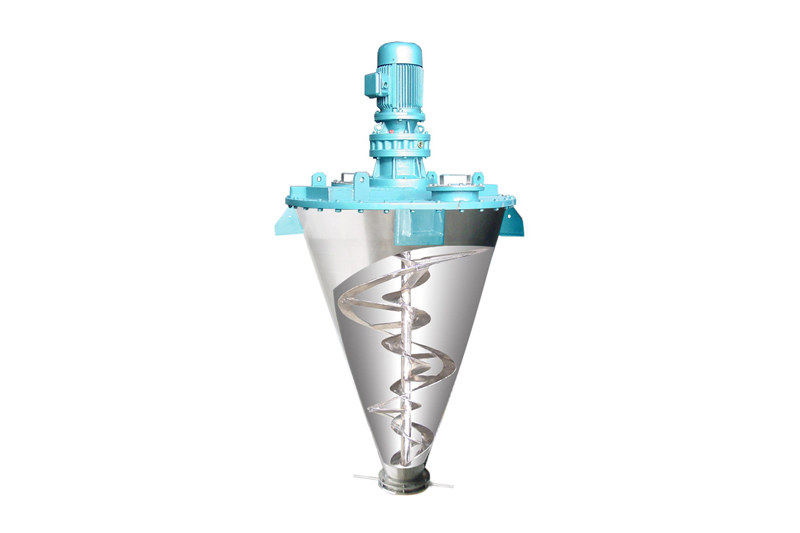

Advanced Conical Ribbon Mixer

Customizable Options

+

The Advanced Conical Ribbon Mixer is designed to offer unparalleled flexibility, with fully customizable features to meet the specific demands of your industry. Its adaptable design ensures optimal performance for a wide range of mixing applications.

Customization options include:

Size: Adjustable dimensions to suit various batch volumes and production scales.

Material: Constructed from high-quality materials such as stainless steel or specialized alloys, ideal for handling corrosive, abrasive, or sensitive substances.

Additional Features: Enhanced capabilities like heating, cooling, pressure/vacuum systems, and automated controls for increased versatility and efficiency.

The mixer’s innovative conical ribbon design creates a unique, three-dimensional mixing pattern. This mechanism ensures a consistent upward flow along the chamber walls and a simultaneous downward flow at the center, delivering thorough and uniform blending for materials of any complexity or composition.
Applications

+

The Advanced Conical Ribbon Mixer is a versatile and reliable solution for a wide range of industries, offering exceptional performance in mixing and blending applications.
Its advanced design makes it ideal for:

Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.

Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.

Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.

Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.

Battery Manufacturing: Optimized for mixing powdered metals and additives, crucial for battery production and energy solutions.

Other Industries: Suitable for pharmaceuticals, ceramics, advanced materials, and other specialized fields requiring precise and uniform mixing.

With its robust design and adaptability, the Advanced Conical Ribbon Mixer delivers high performance, consistency, and reliability across diverse industrial applications.
Applicable Materials

+

The Advanced Conical Ribbon Mixer is engineered to handle a wide variety of materials, ensuring uniformity and precision in every blend.

Its advanced mixing technology is ideal for processing:

Dry Powders: Efficiently blends fine and coarse powders used in food, pharmaceuticals, chemicals, and cosmetics, ensuring consistent product quality.

Solids and Granules: Processes solid particles and granular materials with ease, essential for applications like fertilizers, chemical compounds, and food additives.

Liquids and Pastes: Capable of mixing viscous materials such as paints, adhesives, and creams, with optional features like heating, cooling, or vacuum settings for enhanced performance.

Specialized Materials: Handles complex and sensitive materials, including powdered metals, ceramics, and advanced composites, ensuring precision and consistency in production.

This mixer’s adaptability and durable construction make it a reliable choice for industries with diverse and demanding material processing requirements.
Additional Functions

+

The Advanced Conical Ribbon Mixer is equipped with advanced functionalities to enhance its performance and versatility for specialized applications.

Key features include:

Pressure/Vacuum Blending:

Pressure Blending: Enables controlled pressurization within the mixing chamber, improving material integration for high-density or high-viscosity applications.

Vacuum Blending: Removes air and gases during mixing, enhancing product density, eliminating voids, and preventing contamination, ideal for sensitive formulations.

Reacting:

Supports chemical or physical reactions directly within the mixing chamber, eliminating the need for separate reaction vessels. This feature is particularly valuable in industries like chemicals, pharmaceuticals, and materials science, where in-situ processing improves efficiency and product uniformity.

Agglomerating:

Facilitates the controlled formation of granules or agglomerates by combining fine particles under specific conditions, such as moisture addition or binder incorporation. Essential for applications in food processing, pharmaceuticals, and chemical manufacturing.
