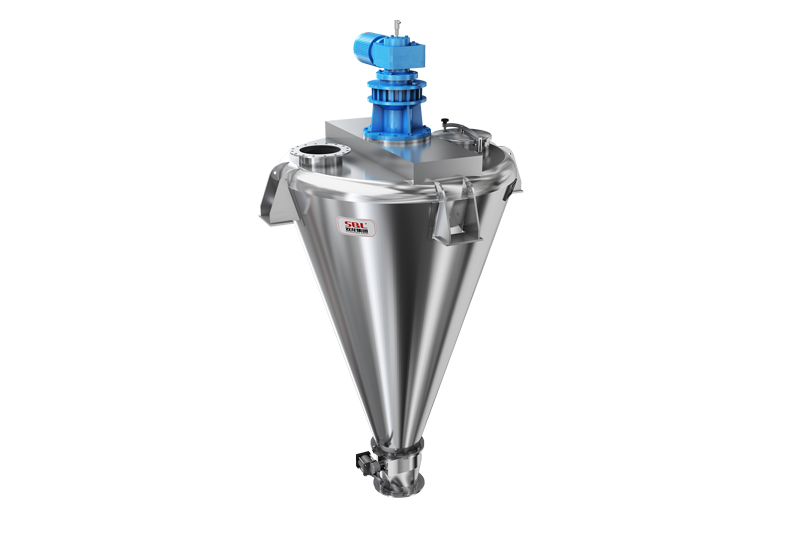

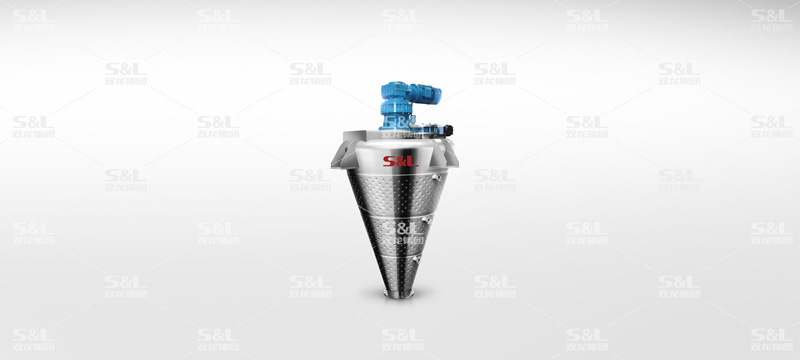

Conical Screw Mixer

The Conical Screw Mixer is designed for gentle yet effective mixing, making it ideal for a variety of industries. With its traditional design and low shear mixing capabilities, it ensures high-quality results at a low cost.
Due to the old-fashioned structure, customers should pay attention to regular maintenance.

✔ Low shear and Soft mixing with low speed

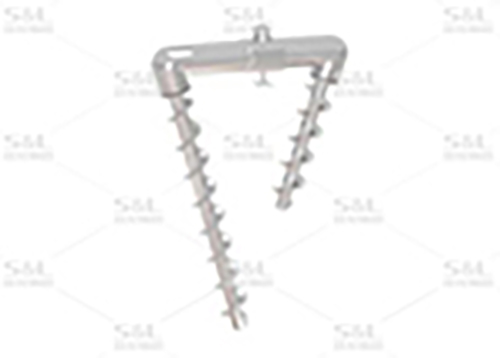

✔ Single screw or twin screw optional

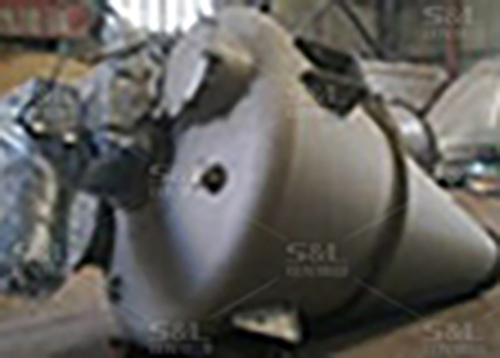

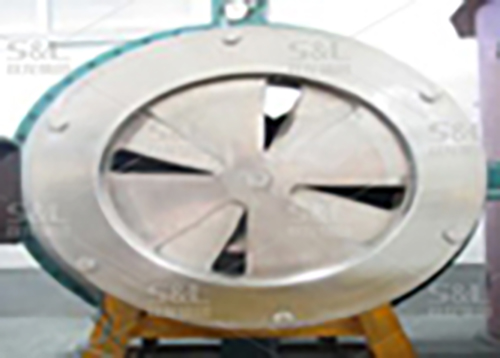

✔ Side discharge is available

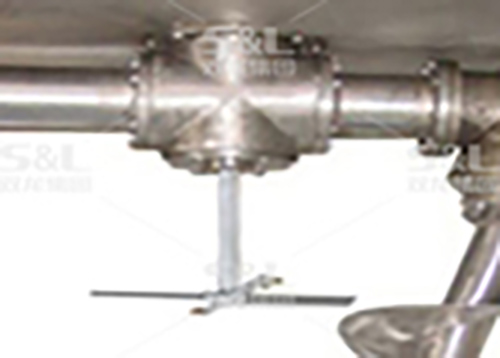

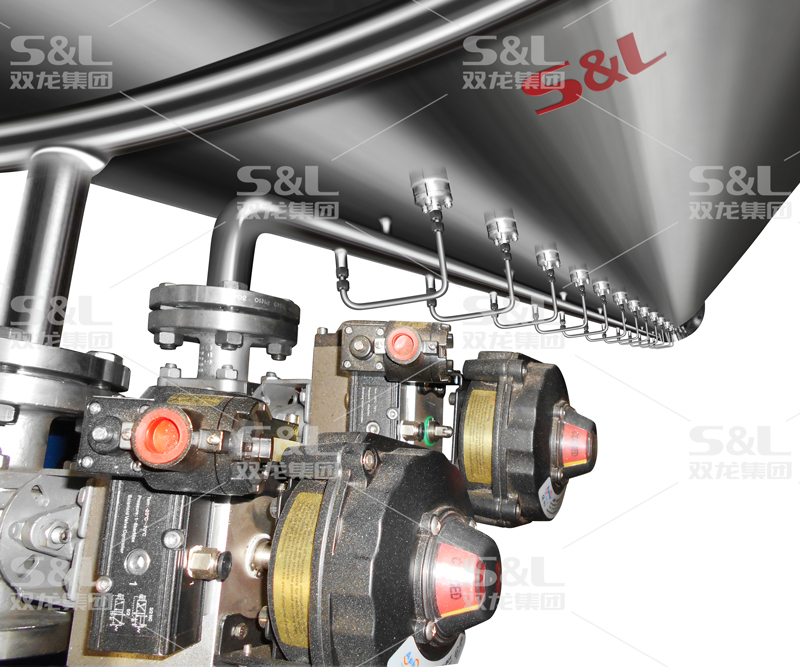

✔ Center rotary spraying design
✔ Suitable for drying liquid in powder
✔ Extra-large sizes mature productio

Product Application

The Conical Screw mixer is a reliable and adaptable solution for a variety of industries, offering exceptional performance in mixing and blending applications. Its advanced design makes it suitable for:

Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.

Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.

Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.

Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.

Other Industries: Suitable for large capacity and Low power consumption application

Standard Technical Data (DSH)

Total Volume	Capacity per batch	Motor power (KW)	Shaft Speed (rpm)
100L	40-60L	1.5	118
500L	200-300L	3	119
1000L	400-600L	4	97
2000L	800-1200L	5.5	97
5000L	2000-3000L	15	74
10000L	4000-6000L	22	72
20000L	8000-12000L	37	56
30000L	12000-18000L	45	56

Application Scenarios

Traditional Design

The Conical Screw Mixer features a classic design that has been proven effective over time, ensuring reliability and ease of use.
Gentle Mixing

This mixer is engineered to provide gentle mixing, making it suitable for sensitive materials that require minimal shear forces during processing.
Low Cost

The Conical Screw Mixer offers an economical solution for businesses looking to optimize their mixing processes without compromising on quality.
Different Jacket Options Available

Customizable jacket options allow for temperature control during mixing, making it suitable for various applications that require specific thermal conditions.
Low Shear

The low shear mixing action ensures that materials retain their integrity, making it ideal for applications where product quality is paramount.
Wide Size Range

Available in various sizes, the Conical Screw Mixer can accommodate different production scales, from small batches to large-scale operations.

Distinctive Qualities

By periodically raising the material through the screw's rotation and revolution, the apparatus creates intricate movements in the tank, including shearing, convection, and diffusion, which results in uniform mixing. Features of this cone screw mixer include energy savings, residue-free discharge, big capacity, and broad applicability.

Relevant Resources

Powders and powders, particles and powders, and powders with trace amounts of liquid additives can all be mixed and blended with an S&L conical screw mixer. The mixing machine can be used to mix coarse, fine, fibrous, or flaky materials. It can also preserve particles as intact as possible and prevent heat-sensitive materials from overheating.

Extra Features

Jacket for heating or cooling, pressure or vacuum inside the mixer

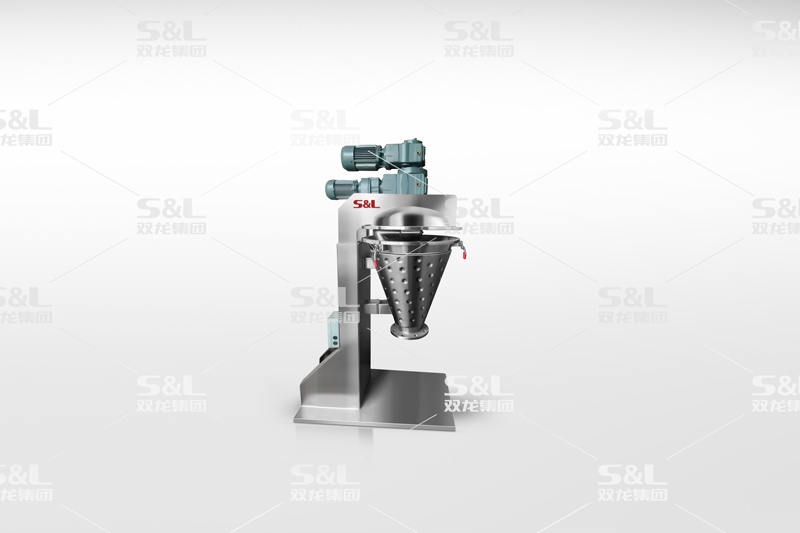

Versatile Conical Screw Mixer

Customizable Options

+

The Versatile Conical Screw Mixer is designed with fully customizable features to meet the unique needs of various industries. Its flexible design ensures optimal performance for a wide range of mixing applications.

Key customization options include:

Size: Adjustable dimensions to accommodate different batch sizes and production scales.

Material: Available in stainless steel or specialized alloys to handle corrosive, abrasive, or sensitive materials.

Additional Features: Enhanced functionalities such as heating, cooling, pressure/vacuum systems, and automated controls for improved versatility and efficiency.

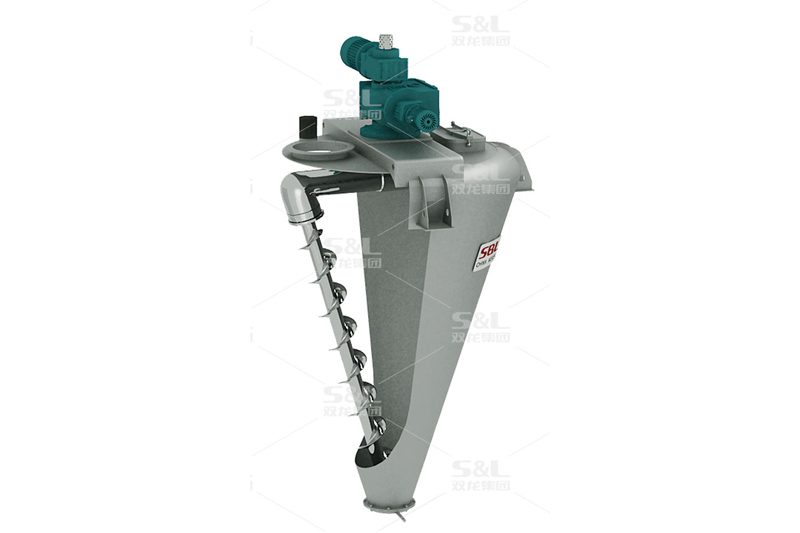

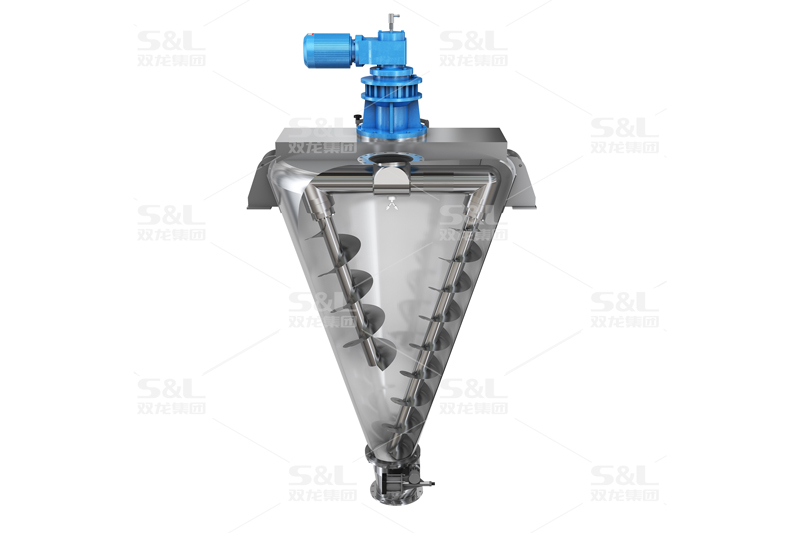

At the heart of the mixer is a conical screw design that creates a unique, three-dimensional mixing pattern. This innovative mechanism ensures a consistent upward flow along the walls of the mixing chamber and a simultaneous downward flow at the center, guaranteeing thorough and uniform blending of materials, regardless of their complexity or composition.
Applications

+

The Versatile Conical Screw Mixer is a reliable and adaptable solution for a variety of industries, offering exceptional performance in mixing and blending applications.

Its advanced design makes it suitable for:

Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.

Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.

Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.

Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.

Other Industries: Suitable for large capacity and Low power consumption application

With its robust design and adaptability, the Versatile Conical Screw Mixer delivers high performance, consistency, and reliability across diverse industrial applications.
Applicable Materials

+

The Versatile Conical Screw Mixer is engineered to handle a wide range of materials, ensuring uniformity and precision in every blend. Its advanced mixing technology is ideal for processing:

Dry Powders: Efficiently blends fine and coarse powders used in food, pharmaceuticals, chemicals, and cosmetics, ensuring consistent product quality.

Solids and Granules: Processes solid particles and granular materials with ease, essential for applications like fertilizers, chemical compounds, and food additives.

Liquids and Pastes: Capable of mixing viscous materials such as paints, adhesives, and creams, with optional features like heating, cooling, or vacuum settings for enhanced performance.

Specialized Materials: Handles complex and sensitive materials, including powdered metals, ceramics, and advanced composites, ensuring precision and consistency in production.

This mixer’s adaptability and durable construction make it a reliable choice for industries with diverse and demanding material processing requirements.
Additional Functions

+

The Versatile Conical Screw Mixer is equipped with advanced functionalities to enhance its performance and versatility for specialized applications.

Key features include:

Pressure/Vacuum Blending:

Pressure Blending: Enables controlled pressurization within the mixing chamber, improving material integration for high-density or high-viscosity applications.

Vacuum Blending: Removes air and gases during mixing, enhancing product density, eliminating voids, and preventing contamination, ideal for sensitive formulations.

Reacting:

Supports chemical or physical reactions directly within the mixing chamber, eliminating the need for separate reaction vessels. This feature is particularly valuable in industries like chemicals, pharmaceuticals, and materials science, where in-situ processing improves efficiency and product uniformity.

Agglomerating:

Facilitates the controlled formation of granules or agglomerates by combining fine particles under specific conditions, such as moisture addition or binder incorporation. Essential for applications in food processing, pharmaceuticals, and chemical manufacturing.
