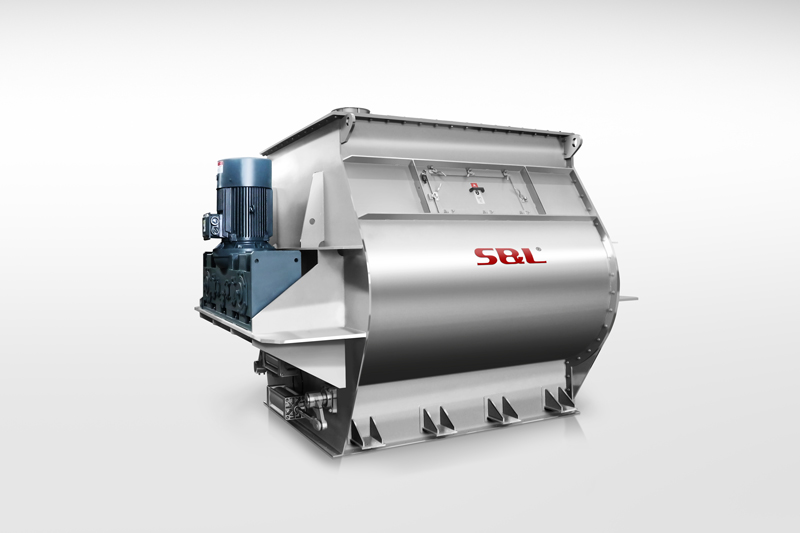

Double Paddle Mixer
Product Application
The Double Paddle Mixer is a reliable and adaptable solution for a wide range of industries, offering exceptional performance in mixing and blending applications. Its advanced design makes it ideal for:
Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.
Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.
Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.
Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.
Battery Manufacturing: Optimized for mixing powdered metals and additives, crucial for battery production and energy solutions.
Other Industries: Suitable for pharmaceuticals, ceramics, advanced materials, and other specialized fields requiring precise and uniform mixing.
Standard Technical Data (WZ)
|
Total Volume |
Capacity per batch |
Motor Power (KW) |
Shaft Speed (rpm) |
|
200L |
80-120L |
3 |
43 |
|
500L |
200-300L |
7.5 |
43 |
|
1000L |
400-600L |
11 |
43 |
|
2000L |
800-1200L |
18.5 |
43 |
|
5000L |
2000-3000L |
37 |
29 |
|
10000L |
4000-6000L |
55 |
29 |
|
15000L |
6000-9000L |
90 |
25 |
|
18000L |
7200-10800L |
110 |
25 |
Application Scenarios
-
Synchronized Dual Shaft OperationThe dual shafts operate in perfect synchronization, providing efficient mixing and ensuring that all materials are thoroughly blended.
-
Suitable For Disparate Material RatiosThis mixer excels in scenarios where the material proportions vary significantly, making it ideal for complex formulations.
-

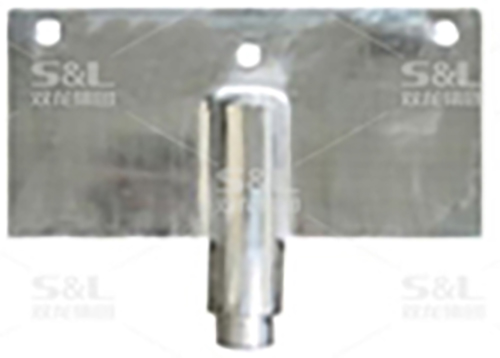

Adjustable Paddle AnglesThe paddles can be adjusted to optimize mixing performance based on the specific materials being processed, enhancing versatility.
-
Wide Size RangeAvailable in sizes from 100 liters to 10,000 liters, the Double Shaft Paddle Mixer can accommodate various production scales, from small batches to large-scale operations.
-
Fast Mixing Speed And Short Discharge Time
Designed for rapid mixing, this mixer minimizes processing time and enhances productivity, allowing for quicker turnaround in production.

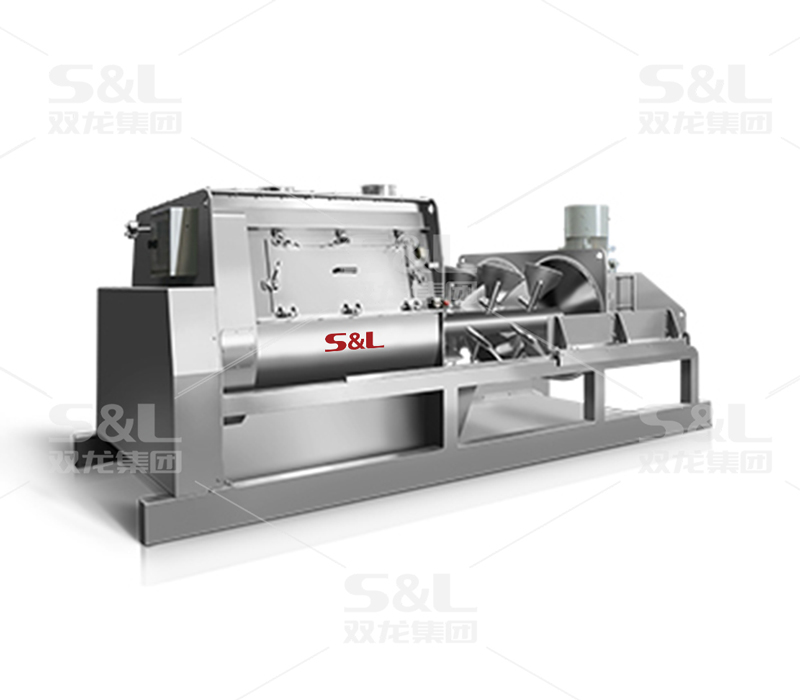

For additional cleaning, the shaft can be fully retracted. Customers can completely resolve the issue of cleaning viscous materials and carrying out maintenance chores in the future thanks to this design. The distinctive design eliminates the possibility of cross-contamination and cuts down on cleaning time. A clean mixing environment is guaranteed by an accessible mixing chamber.

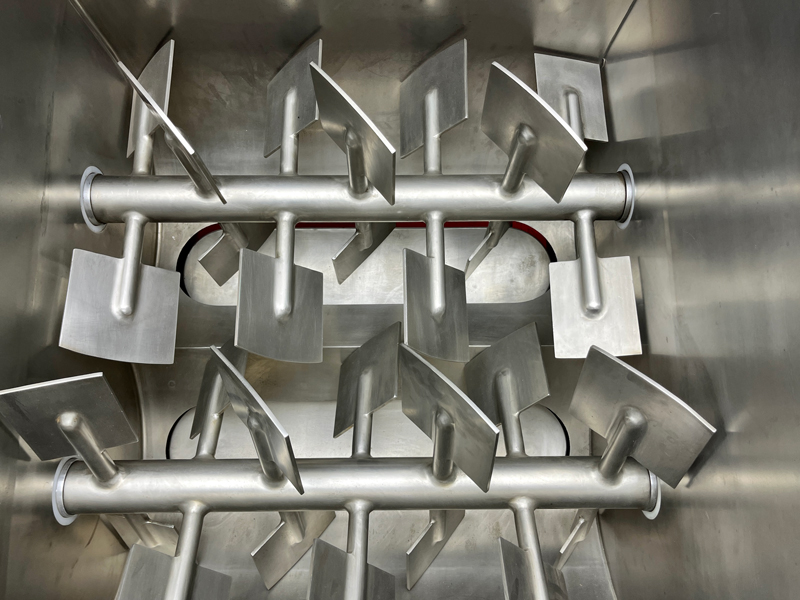

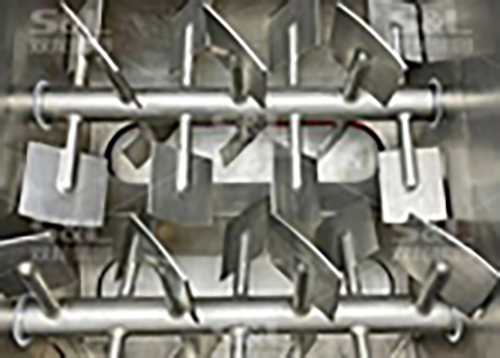

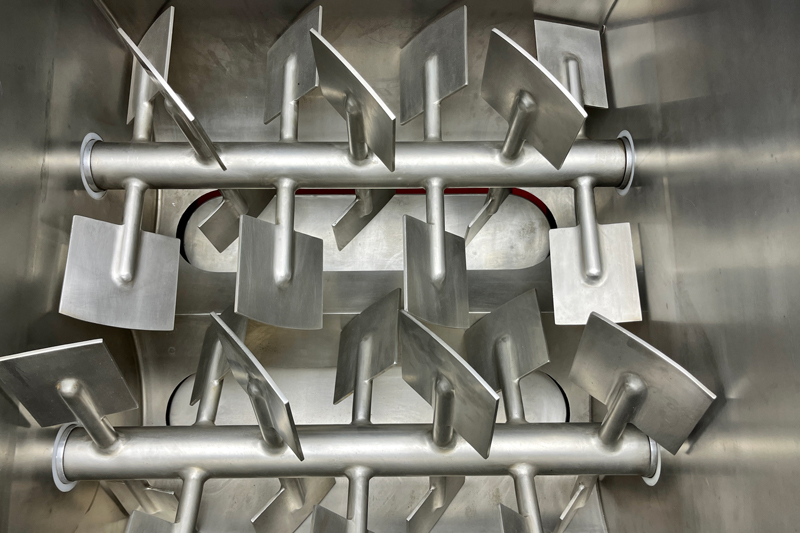

● When the two shafts are running at the same speed in opposite directions, the material forms axial and radial movement due to the unique paddles on the shaft, which quickly achieves equal mixing.
● The drive system's direct connection design maximizes power savings and improves machine stability. When mixing components with significant differences in bulk density and feeding ratio, it is frequently utilized.It works effectively with mixes that have a lot of friction and density, particularly in in building material industry.
Double Shaft Paddle Mixer for Versatile Applications
-
Customizable Options
+The Double Shaft Paddle Mixer for Versatile Applications is designed to provide exceptional flexibility, offering fully customizable features to meet the unique demands of your industry. Its adaptable design ensures optimal performance for a wide range of mixing applications.Customization options include:Size: Adjustable dimensions to suit various batch volumes and production scales.Material: Constructed from high-quality materials such as stainless steel or specialized alloys, ideal for handling corrosive, abrasive, or sensitive substances.Additional Features: Enhanced capabilities like heating, cooling, pressure/vacuum systems, and automated controls for increased versatility and efficiency.The mixer’s innovative double shaft paddle design creates a unique, three-dimensional mixing pattern. This mechanism ensures a consistent upward flow along the chamber walls and a simultaneous downward flow at the center, delivering thorough and uniform blending for materials of any complexity or composition. -
Applications
+The Double Shaft Paddle Mixer for Versatile Applications is a reliable and adaptable solution for a wide range of industries, offering exceptional performance in mixing and blending applications.Its advanced design makes it ideal for:Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.Battery Manufacturing: Optimized for mixing powdered metals and additives, crucial for battery production and energy solutions.Other Industries: Suitable for pharmaceuticals, ceramics, advanced materials, and other specialized fields requiring precise and uniform mixing.With its robust design and adaptability, the Double Shaft Paddle Mixer for Versatile Applications delivers high performance, consistency, and reliability across diverse industrial applications. -
Applicable Materials
+The Double Shaft Paddle Mixer for Versatile Applications is engineered to handle a wide variety of materials, ensuring uniformity and precision in every blend.Its advanced mixing technology is ideal for processing:Dry Powders: Efficiently blends fine and coarse powders used in food, pharmaceuticals, chemicals, and cosmetics, ensuring consistent product quality.Solids and Granules: Processes solid particles and granular materials with ease, essential for applications like fertilizers, chemical compounds, and food additives.Liquids and Pastes: Capable of mixing viscous materials such as paints, adhesives, and creams, with optional features like heating, cooling, or vacuum settings for enhanced performance.Specialized Materials: Handles complex and sensitive materials, including powdered metals, ceramics, and advanced composites, ensuring precision and consistency in production.This mixer’s adaptability and durable construction make it a reliable choice for industries with diverse and demanding material processing requirements. -
Additional Functions
+The Double Shaft Paddle Mixer for Versatile Applications is equipped with advanced functionalities to enhance its performance and versatility for specialized applications.Key features include:Pressure/Vacuum Blending:Pressure Blending: Enables controlled pressurization within the mixing chamber, improving material integration for high-density or high-viscosity applications.Vacuum Blending: Removes air and gases during mixing, enhancing product density, eliminating voids, and preventing contamination, ideal for sensitive formulations.Reacting:Supports chemical or physical reactions directly within the mixing chamber, eliminating the need for separate reaction vessels. This feature is particularly valuable in industries like chemicals, pharmaceuticals, and materials science, where in-situ processing improves efficiency and product uniformity.Agglomerating:Facilitates the controlled formation of granules or agglomerates by combining fine particles under specific conditions, such as moisture addition or binder incorporation. Essential for applications in food processing, pharmaceuticals, and chemical manufacturing.
