Decoding the Secret of Homogeneity: How the Ribbon Mixer Achieves a Staggering 1:10,000 Mixing Ratio

In industries like pharmaceuticals, food additives, or high-end chemicals, a critical challenge often arises: how to uniformly disperse a tiny amount of a key ingredient (like a vitamin, flavoring, or catalyst) into a large volume of base material. Improper mixing can lead to inconsistent batch quality or, worse, safety issues. This is where the superior performance of the Ribbon Mixer shines, reliably achieving a mixing homogeneity with a Coefficient of Variation (CV) of ≤7%, and capable of handling extreme ratios like 1:10,000.

What's the Scientific Principle Behind This?

The answer lies in its ingenious ribbon design. A ribbon mixer doesn't just stir; it works by orchestrating a complex material mixing system. The core of this system is the double-layer (inner and outer) helical ribbons mounted on the same horizontal shaft:

• The Outer Ribbon: Propels materials from both ends of the U-shaped vessel towards the center, gathering them.

• The Inner Ribbon: Operates in the reverse direction, transporting the materials accumulated in the center back out towards the ends.

This counter-current "push-pull" motion creates intense convective mixing and shear mixing within the vessel. Materials are not just rotating in place but undergo macroscopic cross-flow throughout the entire mixing chamber. Simultaneously, they are continuously stretched and divided at the ribbon edges and between layers of material flowing at different velocities. This compound motion generates numerous vortices, allowing minor components to rapidly diffuse into the bulk material, achieving high-precision distribution in three-dimensional space.

Shuanglong Group's Masterful Engineering

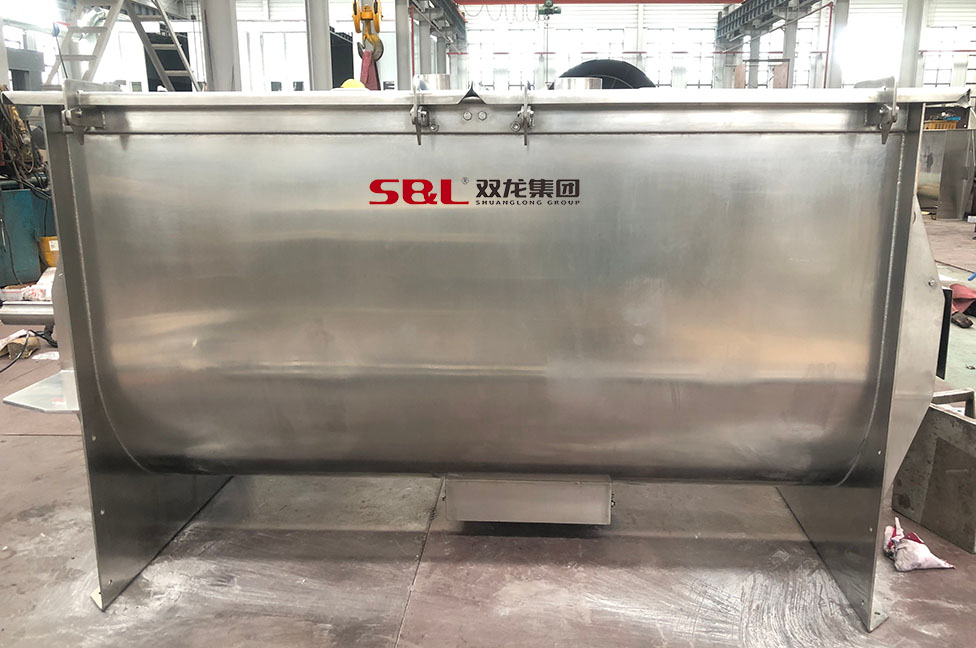

As a specialized manufacturer of powder mixing equipment, Shuanglong Group has mastered this principle. Our engineers optimize the ribbon angle, pitch, and the clearance to the vessel wall with millimeter precision, ensuring minimal flow resistance and an optimal material path. We employ high-precision machining to create a smooth, continuous U-shaped inner surface and maintain an extremely small gap between the ribbon tips and the wall. This not only drastically reduces residue but also ensures that even materials with significant differences in bulk density (e.g., metal powder vs. plastic pellets) are subjected to the same mixing intensity quickly, preventing segregation or stratification.

Therefore, when your process demands near-absolute homogeneity, partnering with a supplier like Shuanglong Group, which possesses profound technical expertise, is crucial. We provide not just a machine, but a mixing solution that guarantees your product's consistency, reliability, and competitive edge. The ribbon mixer, through its scientific principles and robust engineering, proves to be the preferred choice for modern industrial production where ultimate homogeneity is paramount.
