The Art of Loading and Discharging: An Operational Guide to Maximizing Ribbon Mixer Efficiency

Proper loading and unloading operations are the key steps to ensure the efficient and stable operation of the screw mixer. The art of "how to feed materials" and "how to discharge materials" has a decisive impact on mixing effectiveness, equipment lifespan, and production efficiency. Improper operations can not only reduce mixing quality but may even lead to equipment overload and damage.

The Science of Loading: Mastering Volume and Sequence

1. The Principle of Optimal Fill Volume

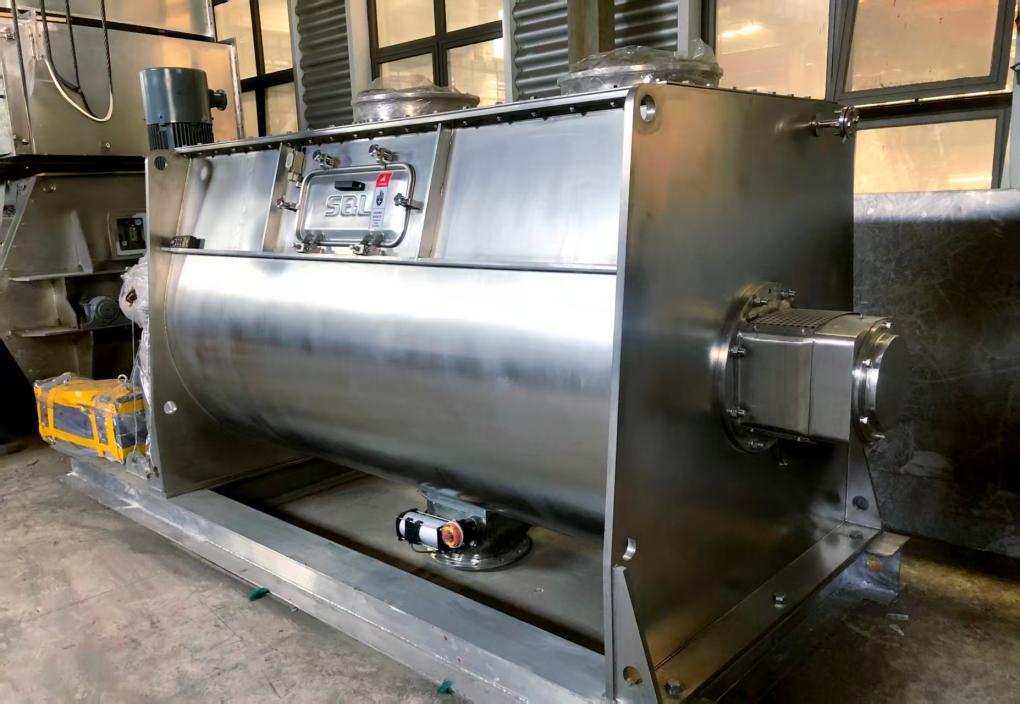

Maximizing a Ribbon Mixer's capacity does not mean filling it to the brim. For most applications, the optimal fill level is between60% and 70% of the mixer's total geometric volume. This range is scientifically determined to provide the perfect balance: sufficient material to generate effective shear and convective forces, yet adequate void space to allow for intense, three-dimensional particle movement, folding, and tumbling. Overfilling creates stagnant "dead zones," severely hampers material circulation, and risks overloading the drive system. Underfilling reduces mixing efficiency and can increase abrasive wear on the agitator and shell. Shuanglong Group's horizontal ribbon mixers are meticulously engineered with this principle at their core. The optimized, elongated U-trough geometry ensures low-friction material flow, enabling peak performance precisely within this ideal loading range.

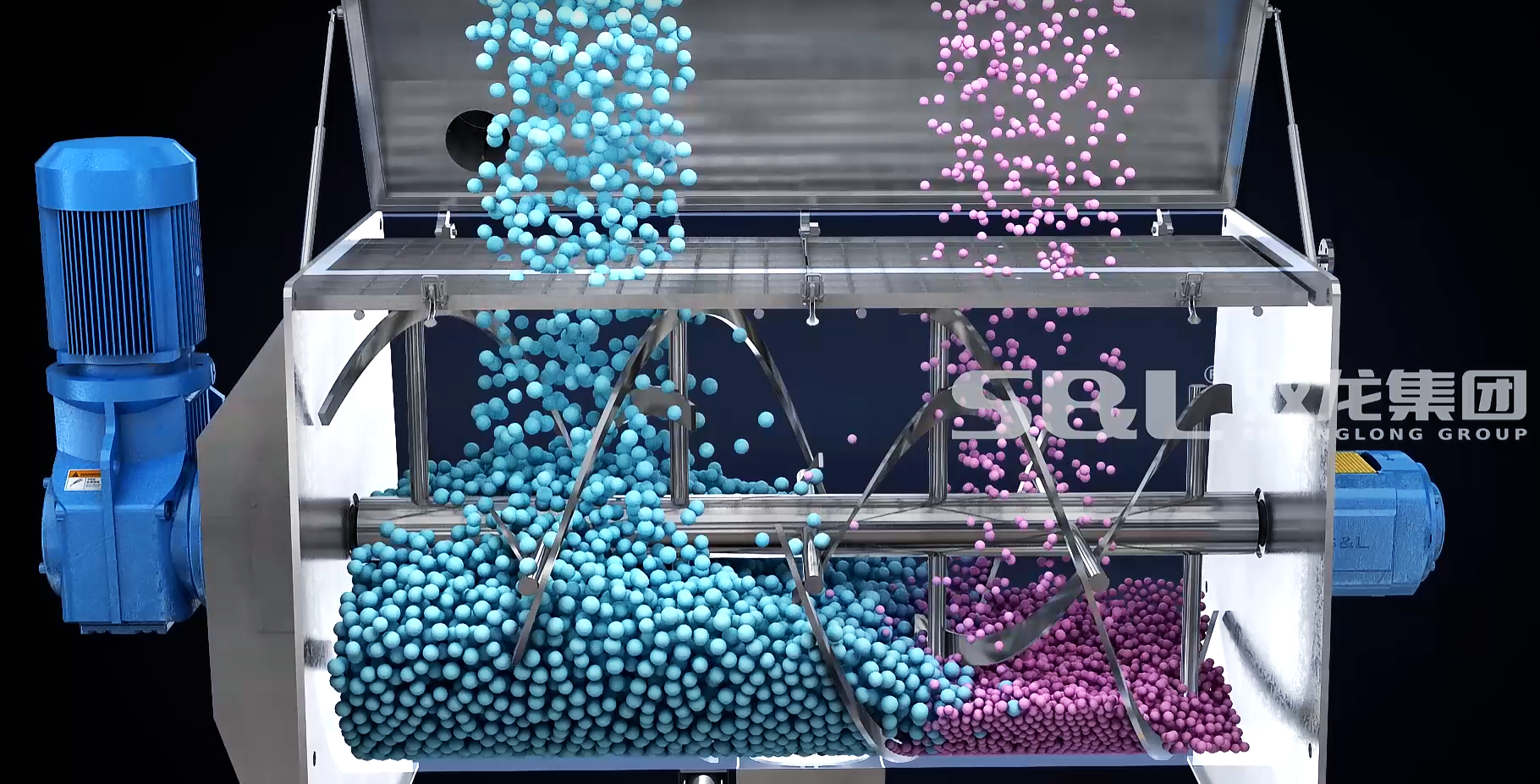

2. Strategic Loading Sequences: Building a Foundation for Uniformity

The order in which components are feeded is a powerful lever for achieving perfect dispersion.

• Large-to-Small Particle Sequence: Introduce coarser components first, followed by finer ones. This prevents the finer particles from percolating through the voids between larger particles and settling at the bottom—a phenomenon known as segregation—which is extremely difficult to reverse during mixing.

• Light-to-Heavy Density Sequence: When blending materials with significant differences in bulk density, load the lighter material first. Adding the heavier component on top allows gravity and the mechanical action of the ribbons to work synergistically, facilitating a more natural and homogeneous integration from the start.

• Stepwise Dilution for Micro-Ingredients: For trace additives (e.g., active pharmaceutical ingredients, potent flavors, or dyes), direct addition to the main batch is a recipe for inconsistency. The industry best practice is stepwise dilution or "premixing." First, the micro-ingredient is intimately blended with a small, manageable portion of the major carrier. This homogeneous premix is then blended with a larger portion, and the process is repeated until the full batch size is achieved. This method is non-negotiable for guaranteeing uniform distribution at ratios as high as 1:10,000 or greater.

The Strategy of Discharging: Ensuring Speed, Cleanliness, and Yield

1. Selecting the Appropriate Discharge System

The end of the mix cycle is as critical as the beginning. Shuanglong Group provides tailored discharge solutions to match product characteristics and process requirements:

• Pneumatic Full-Port Discharge Valve: The ideal choice for standard powders and granules. This design offers a large, unobstructed opening that allows for rapid, complete emptying—typically within 1-2 minutes—minimizing cycle time and residual product.

• Pneumatic Butterfly Valve: The superior solution for high-fineness powders (preventing dust emission) or semi-fluid/viscous pastes. Its excellent sealing capability during operation and at closure effectively contains the product, prevents leakage, and safeguards against contamination.

2. The Imperative of Minimal Residue

Post-discharge residue is a key metric for evaluating mixer design and process hygiene. Industry standards, often citing tests with materials like corn, typically mandate a residual rate of ≤2%. Shuanglong mixers are engineered to surpass this requirement. Through precision machining, the clearance between the outer ribbon and the U-trough wall is minimized. Crucially, during the discharge cycle, the ribbons remain in motion, actively sweeping and guiding material toward the outlet. This results in a near-total "clean-out" effect, which is vital for reducing product waste, preventing costly cross-contamination between batches, and simplifying cleaning procedures.

Mastering the interconnected arts of loading and discharging transforms a ribbon mixer from a simple blending tool into a highly optimized and reliable process unit. It unlocks maximum efficiency per batch cycle, ensures consistent, high-quality output, and protects your capital investment. Shuanglong Group's equipment is designed from the ground up with this holistic operational philosophy, ensuring your production flows are smoother, more economical, and consistently high-performing.
