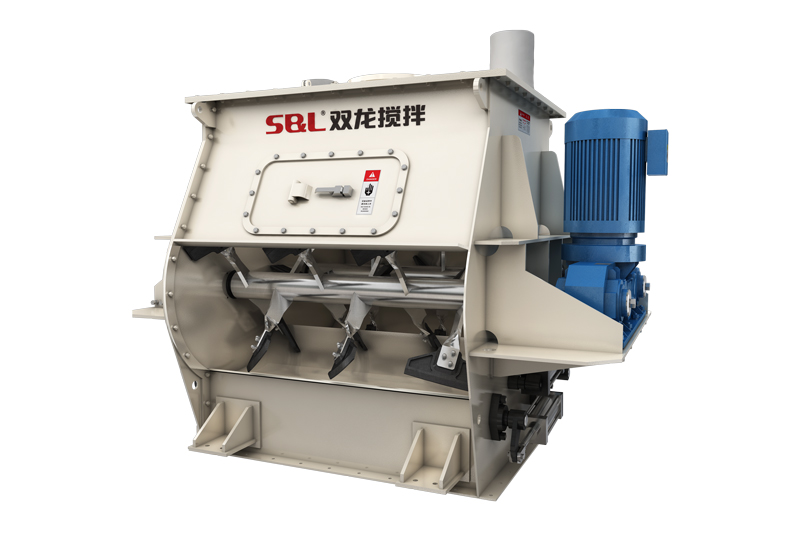

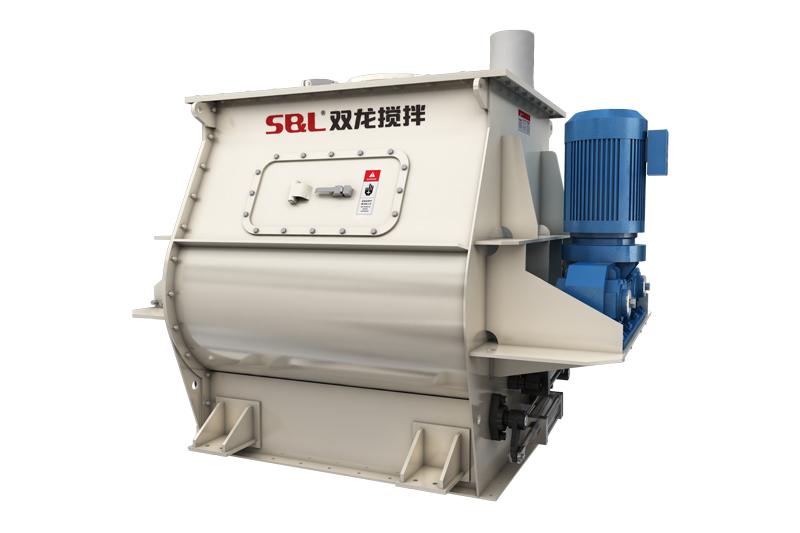

Paddle Mixer For Mortar/Cement

Dry-mix mortar find their superior choice in WZ-M, which boasts efficient mixing technology and cost-effective solutions. Commanding an impressive 85% market share in China's mortar industry.

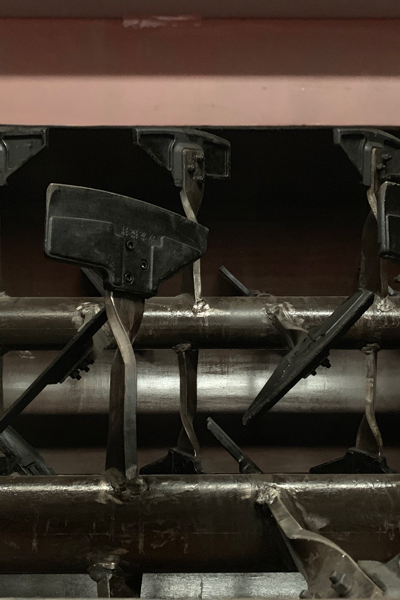

✔ The dual shafts operate at a consistent speed in opposing directions, equipped with specialized paddles that propel materials in both radial and axial motions, ensuring rapid and thorough mixing.
✔ The direct-drive design of the system minimizes energy consumption while enhancing operational stability.
✔ This mixer is ideal for blending materials with significant differences in bulk density or feeding ratios, excelling in handling mixtures with high density and friction. It is particularly effective in the building materials industry, delivering reliable and efficient mixing performance.

Standard Technical Data （WZ-M)

Total Volume	Capacity per batch	Motor Power (KW)	Shaft Speed (rpm)
2000L	800-1400L	18.5	43
3000L	1200-2100L	22	43
4000L	1600-2800L	30	29
6000L	2400-4200L	45	29
10000L	4000-7000L	55	29
13000L	5000-9000L	75	25

Distinctive Qualities

The WZ-M High Efficiency Mortar/Cement Double Paddle Mixer is the top choice for dry-mix mortar production, offering advanced mixing technology and cost-effective solutions. With a dominant 85% market share in China's mortar industry, it ensures exceptional performance and reliability. The mixer features dual shafts operating at consistent speeds in opposite directions, equipped with specialized paddles that drive materials in radial and axial motions, achieving rapid and uniform mixing. Its direct-drive design minimizes energy consumption while enhancing operational stability. Ideal for blending materials with significant differences in bulk density or feeding ratios, the WZ-M excels in handling high-density, high-friction mixtures, making it a trusted solution in the building materials industry for efficient and reliable mixing performance.

The WZ-M is the most cost-effective model in its series. By replacing stainless steel with wear-resistant manganese steel and incorporating our patented dual-shaft synchronous operation technology, it significantly reduces the maintenance rate compared to the older belt-driven models. With years of expertise in the mortar industry, we also provide comprehensive production line solutions to meet diverse needs.
