Plough Paddle Dryer

The Plough/Paddle Dryer is designed for effective drying of materials with high moisture content. Featuring diverse internal mixing components and customizable heating options, it ensures optimal drying performance across various industries. Widely used in food industry.

✔ High moisture materials acceptable
✔ Mechanical sealing optional
✔ Capable of withstanding negative pressure
✔ Full set of condensation collection module
✔ Heating temperature ranges from 30 to 250 degrees

Product Application

Battery industry: drying while combining battery granules

Standard Technical Data （LPH)

Total Volume	Capacity per batch	Motor power (KW)		Shaft Speed (rpm)
Total Volume	Capacity per batch	Main shaft	Chopper	Shaft Speed (rpm)
100L	40-60L	3	1.5	134
500L	200-300L	7.5	1.5	80
1000L	400-600L	11	3	61
2000L	800-1200L	18.5	3	50
5000L	2000-3000L	37	4	35
8000L	3200-4800L	45	4	30
10000L	4000-6000L	55	4	28

Application Scenarios

Diverse Internal Mixing Components

The Plough/Paddle Dryer features a variety of internal mixing elements, allowing for tailored drying solutions that meet specific material requirements and enhance drying efficiency.
High Moisture Handling

Designed to effectively process materials with high moisture content, this dryer ensures thorough drying without compromising product quality.
Customizable Heating And Cooling Jacket

The jacket can be heated or cooled, providing precise temperature control during the drying process, which is essential for sensitive materials.

High Temperature Capability

With a maximum operating temperature of 600 degrees Celsius, the Plough/Paddle Dryer can accommodate a wide range of drying applications, including those requiring high heat.
Vacuum Operation

The ability to operate under vacuum conditions enhances drying efficiency and reduces drying times, resulting in better product quality and lower energy consumption.
Wide Size Range

Available in various sizes, the Plough/Paddle Dryer can accommodate different production scales, from small batches to large-scale operations.

Distinctive Qualities

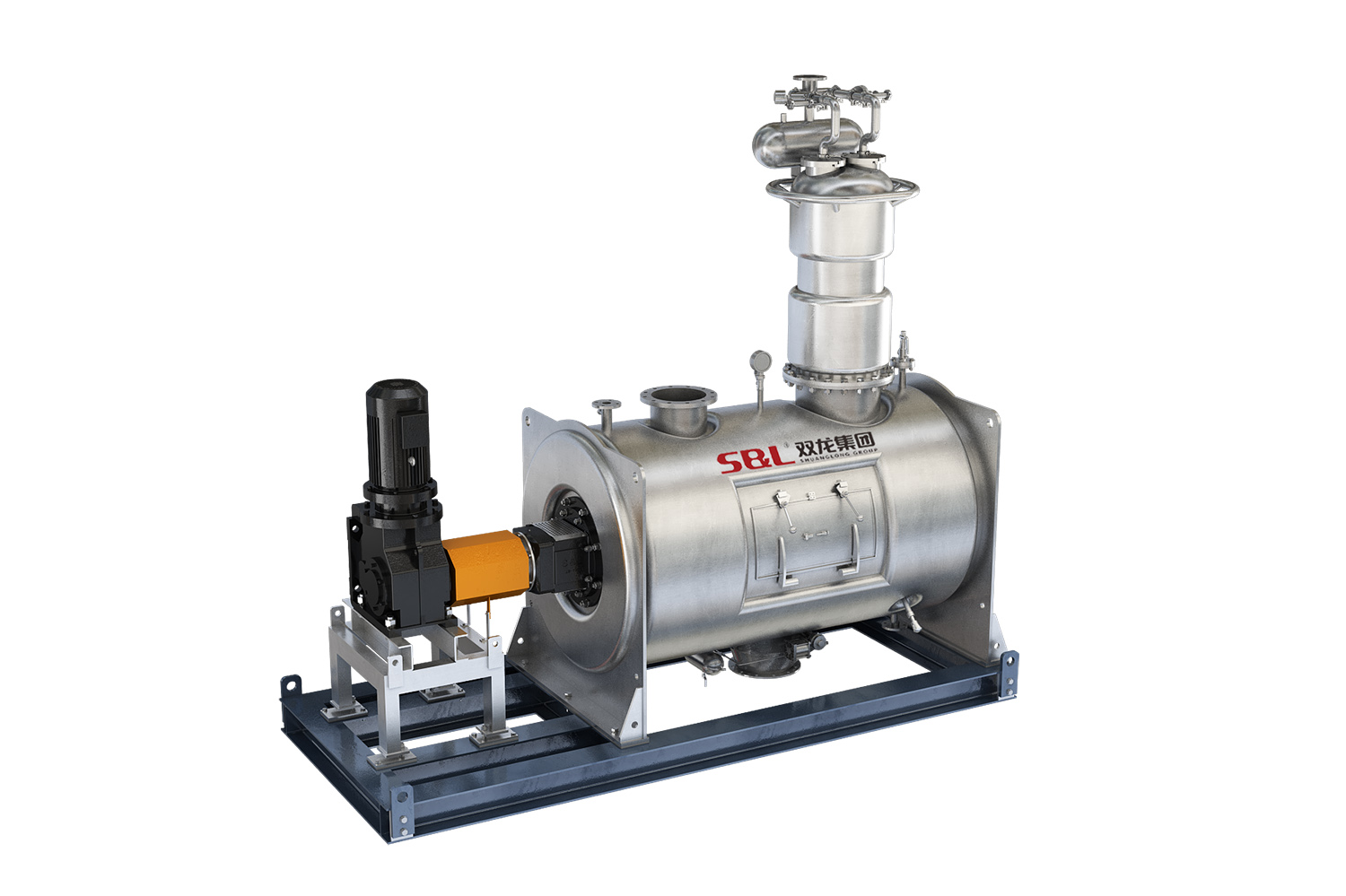

In the lithium battery business, material drying is a crucial stage in the creation of high-nickel goods. The plough paddle dryer that S&L designed is a great option for drying while battery powder is being mixed. Along with other parts, the cylindrical vessel with a heating jacket has an inlet, exhaust outlet, thermometer, pressure gauge, sampler, and bottom discharge outlet.
