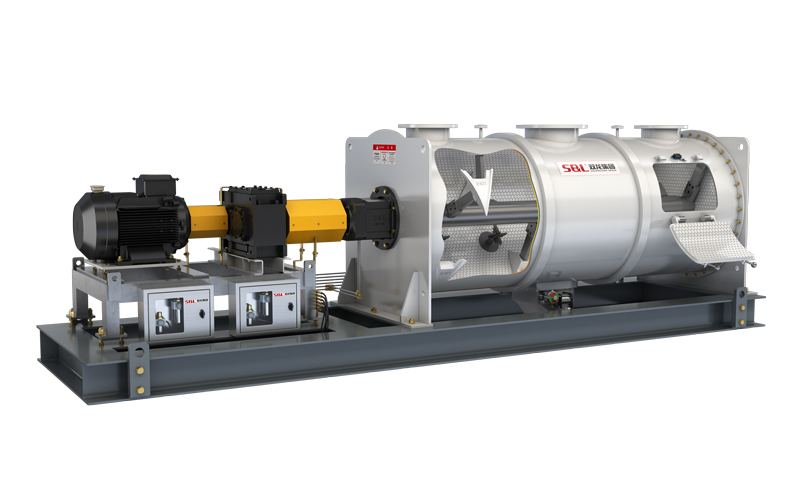

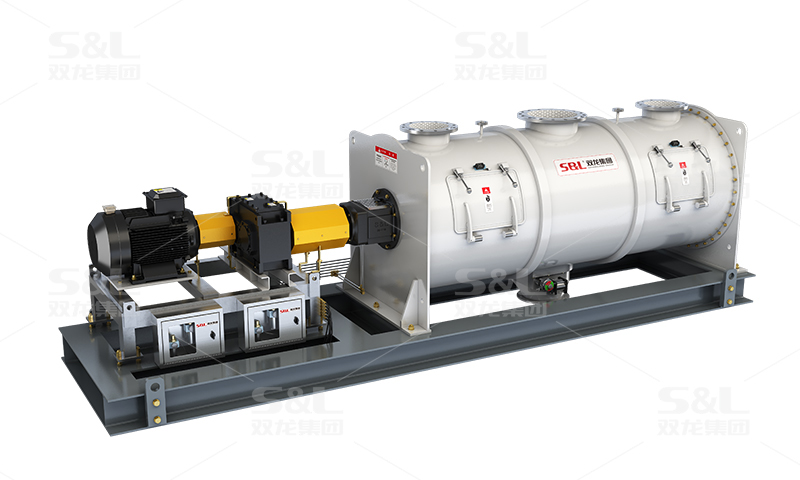

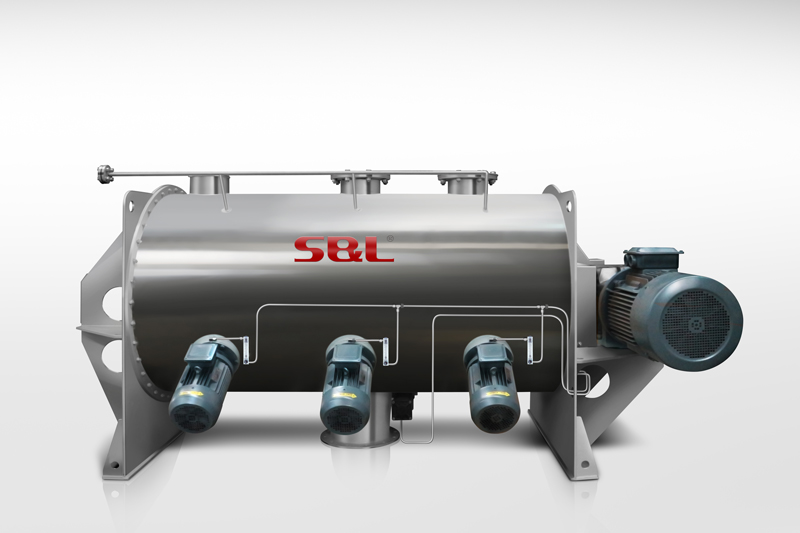

Plough Share Mixer
Product Application
The Plough Share Mixer is a versatile and reliable solution for a wide range of industries, offering exceptional performance in mixing and blending applications. Its advanced design makes it ideal for:
Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.
Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.
Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.
Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.
Battery Manufacturing: Optimized for mixing powdered metals and additives, crucial for battery production and energy solutions.
Other Industries: Suitable for pharmaceuticals, ceramics, advanced materials, and other specialized fields requiring precise and uniform mixing.
Standard Technical Data (LDH)
|
Total Volume |
Capacity per batch |
Motor power (KW) |
Shaft Speed (rpm) |
|
|
Main shaft |
Chopper |
|||
|
100L |
40-60L |
4 |
1.5 |
200 |
|
500L |
200-300L |
11 |
1.5 |
145 |
|
1000L |
400-600L |
18.5 |
4 |
134 |
|
2000L |
800-1200L |
30 |
4 |
121 |
|
5000L |
2000-3000L |
55 |
4 |
85 |
|
10000L |
4000-6000L |
90 |
5.5 |
60 |
|
12000L |
4800-72000L |
110 |
5.5 |
38 |
|
15000L |
6000-9000L |
132 |
5.5 |
25 |
Application Scenarios
-

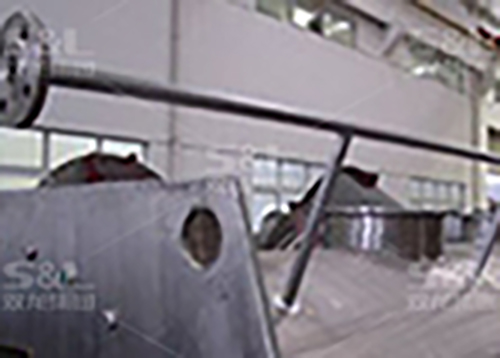

Different Agitator OptionsThe Plough Share Mixer offers a variety of agitator configurations, allowing customization to meet specific mixing requirements and optimize performance.
-

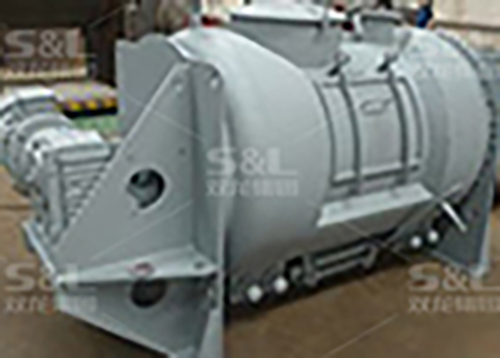

Customizable Jacket OptionsAvailable with different jacket configurations, this mixer allows for temperature control during the mixing process, making it suitable for applications that require precise thermal management.
-

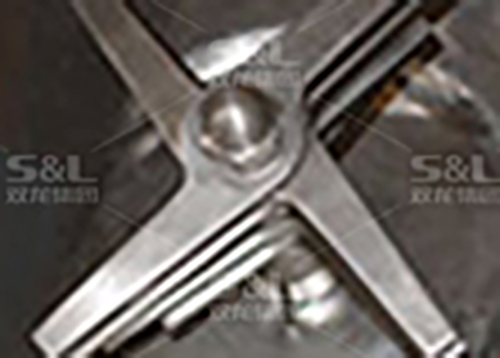

High-Speed ChopperEquipped with a high-speed chopper, the Plough Share Mixer enhances the mixing process by effectively breaking down materials and ensuring a uniform blend.
-
Wide Size Range
Available in various sizes, the Plough Share Mixer can accommodate different production scales, from small batches to large-scale operations, making it a versatile choice for any facility. -
High Share Mixing
The design of the Plough Share Mixer provides high share mixing capabilities, ensuring thorough blending and dispersion of materials, which is essential for achieving consistent product quality.
The product is separated and raised into three dimensions by the plow, and the quantity and configuration of the tools ensure agitation all the way along the vessel's length. The blades of the high-speed choppers cut and scatter the material as it passes by, quickly producing consistent mixing. When liquid is added, the choppers aid to break up lumps in the raw material, break up sticky additives, and stop agglomerates from forming.
Utilization
Chemical: powdered chemicals, dyes
Makeup
Battery: battery substance
Pharmaceutical: powdered chemicals
Useful Resources
Powders and powders, particles and powders, and powders and tiny amounts of liquid additives can all be mixed with the S&L plough share mixer.
Extra Purposes
Mixer pressure/vacuum, jacket for heating or cooling.
Plough Share Mixer for Efficient Mixing
-
Customizable Options
+The Plough Shear Mixer for Efficient Mixing is designed to deliver exceptional flexibility, offering fully customizable features to meet the unique requirements of your industry. Its adaptable design ensures optimal performance for a wide range of mixing applications.Customization options include:Size: Adjustable dimensions to accommodate various batch volumes and production scales.Material: Constructed from high-quality materials such as stainless steel or specialized alloys, ideal for handling corrosive, abrasive, or sensitive substances.Additional Features: Enhanced capabilities like heating, cooling, pressure/vacuum systems, and automated controls for increased versatility and efficiency.The mixer’s innovative plough shear design creates a unique, three-dimensional mixing pattern. This mechanism ensures a consistent upward flow along the chamber walls and a simultaneous downward flow at the center, delivering thorough and uniform blending for materials of any complexity or composition. -
Applications
+The Plough Shear Mixer for Efficient Mixing is a versatile and reliable solution for a wide range of industries, offering exceptional performance in mixing and blending applications.Its advanced design makes it ideal for:Food Industry: Perfect for blending dry ingredients, spices, and additives, ensuring consistency and quality in food production.Chemical Industry: Ideal for mixing chemical powders, granules, and formulations, enhancing uniformity and performance in chemical products.Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogeneous mixing of components.Cosmetics Industry: Efficiently blends powders, pigments, and fine ingredients used in cosmetic formulations.Battery Manufacturing: Optimized for mixing powdered metals and additives, crucial for battery production and energy solutions.Other Industries: Suitable for pharmaceuticals, ceramics, advanced materials, and other specialized fields requiring precise and uniform mixing.With its robust design and adaptability, the Plough Shear Mixer for Efficient Mixing delivers high performance, consistency, and reliability across diverse industrial applications. -
Applicable Materials
+The Plough Shear Mixer for Efficient Mixing is engineered to handle a wide variety of materials, ensuring uniformity and precision in every blend.Its advanced mixing technology is ideal for processing:Dry Powders: Efficiently blends fine and coarse powders used in food, pharmaceuticals, chemicals, and cosmetics, ensuring consistent product quality.Solids and Granules: Processes solid particles and granular materials with ease, essential for applications like fertilizers, chemical compounds, and food additives.Liquids and Pastes: Capable of mixing viscous materials such as paints, adhesives, and creams, with optional features like heating, cooling, or vacuum settings for enhanced performance.Specialized Materials: Handles complex and sensitive materials, including powdered metals, ceramics, and advanced composites, ensuring precision and consistency in production.This mixer’s adaptability and durable construction make it a reliable choice for industries with diverse and demanding material processing requirements. -
Additional Functions
+The Plough Shear Mixer for Efficient Mixing is equipped with advanced functionalities to enhance its performance and versatility for specialized applications.Key features include:Pressure/Vacuum Blending:Pressure Blending: Enables controlled pressurization within the mixing chamber, improving material integration for high-density or high-viscosity applications.Vacuum Blending: Removes air and gases during mixing, enhancing product density, eliminating voids, and preventing contamination, ideal for sensitive formulations.Reacting:Supports chemical or physical reactions directly within the mixing chamber, eliminating the need for separate reaction vessels. This feature is particularly valuable in industries like chemicals, pharmaceuticals, and materials science, where in-situ processing improves efficiency and product uniformity.Agglomerating:Facilitates the controlled formation of granules or agglomerates by combining fine particles under specific conditions, such as moisture addition or binder incorporation. Essential for applications in food processing, pharmaceuticals, and chemical manufacturing.
