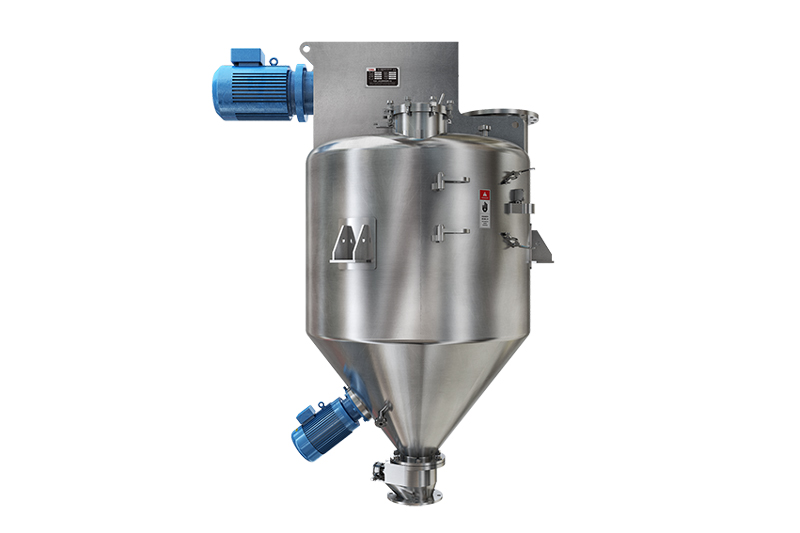

Vertical Ribbon Mixer

The Vertical Ribbon Mixer is a state-of-the-art mixing solution designed for various industries including pharmaceuticals, chemicals, food processing and new materials. The mixer features an innovative ribbon design that ensures high efficiency, uniform mixing and minimal maintenance, making it the preferred choice for leading companies in the flavors and fragrances industry.

✔ Sanitary design without cross-contamination
✔ Complete discharge
✔ Excellent mixing uniformity
✔ CIP Clean cluster
✔ No lubrication leaking risk
✔ Long life with minimal maintenance

Product Application

Vertical Ribbon Mixers are versatile and suitable for a variety of applications, including:

Pharmaceutical Industry: Ideal for mixing powders and granules, ensuring consistent quality of drug formulations.

Chemical Manufacturing: Effectively mix various chemical compounds to improve product uniformity and performance.

Food Processing: Ideal for blending dry ingredients, spices and additives, maintaining flavor integrity and quality.

New Materials Development: Promote the blending of advanced materials and support innovation in product development.

Engineering Company: Providing reliable mixing solutions for various engineering applications, ensuring precision and efficiency.

Standard Technical Data (GPH)

Total Volume	Capacity per batch	Motor power (KW)		Shaft Speed (rpm)
Total Volume	Capacity per batch	Main shaft	Chopper	Shaft Speed (rpm)
100L	40-60L	3	1.5	134
500L	200-300L	7.5	1.5	80
1000L	400-600L	11	3	61
2000L	800-1200L	18.5	3	50
5000L	2000-3000L	37	4	35
8000L	3200-4800L	45	4	30
10000L	4000-6000L	55	4	28

Application Scenarios

High Efficiency Mixing

The unique design of the Vertical Ribbon Mixer allows for rapid and thorough mixing, significantly reducing processing time compared to traditional mixers.
Short Mixing Time

Engineered to achieve optimal mixing in a fraction of the time, this mixer enhances productivity and throughput in manufacturing processes.
High Uniformity

The innovative mixing mechanism ensures that materials are blended uniformly, resulting in consistent product quality across batches.
No Oil Leaking

Designed with small and large operations.

Distinctive Qualities

Ribbon Design:

The unique ribbon structure enables countercurrent mixing, increasing the efficiency and effectiveness of the mixing process. This design ensures that the materials are constantly moving and mixing, resulting in a uniform mix.

Low Maintenance Cost:

Vertical Ribbon Mixers are low maintenance, reducing downtime and operating costs. Their rugged construction and reliable components mean fewer repairs and replacements are required.

Easy to maintain:

The mixer is designed for user-friendliness, requiring no special installation tools or expensive spare parts. Easy maintenance allows operators to focus on production, not equipment problems.

Durable Construction:

Vertical Ribbon Mixers are made of high-quality materials to withstand the rigors of industrial use, ensuring long service life and high reliability in demanding environments.

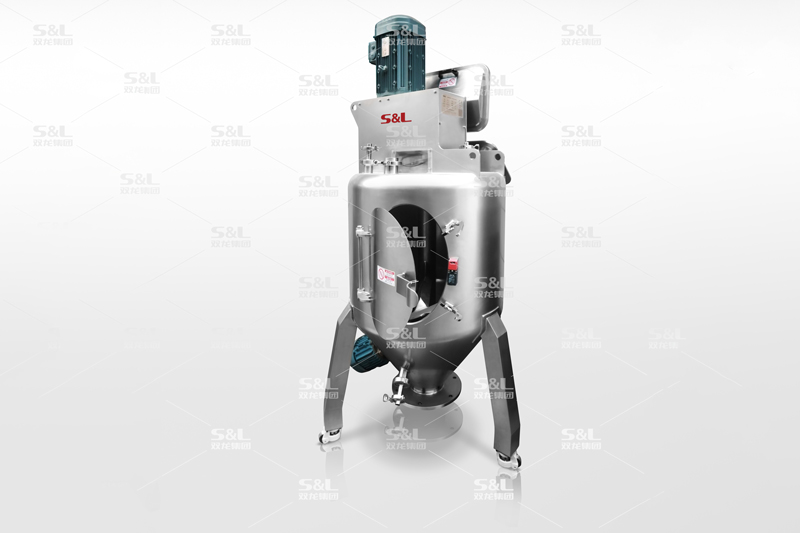

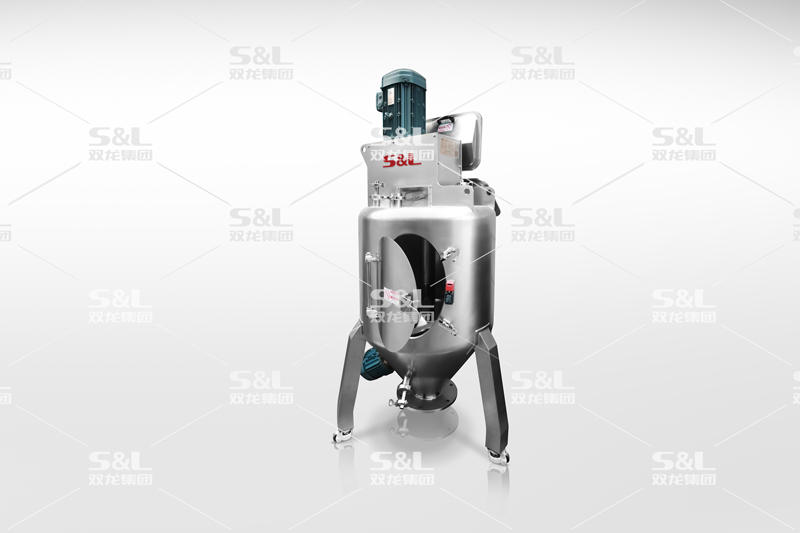

High-Efficiency Vertical Ribbon Mixer

Customizable Options

+

The agitator of the vertical ribbon mixer is fully customizable to meet specific customer requirements, offering a tailored solution for diverse mixing applications.
Customization options include:

● Size: Adaptable dimensions to suit various batch volumes and operational scales.

● Material: A choice of construction materials, such as stainless steel or special alloys, to accommodate the handling of specific products, including corrosive or sensitive materials.

● Additional Features: Integration of advanced functionalities like heating, cooling,pressure/vacuum capabilities, or automated controls for enhanced performance and versatility.

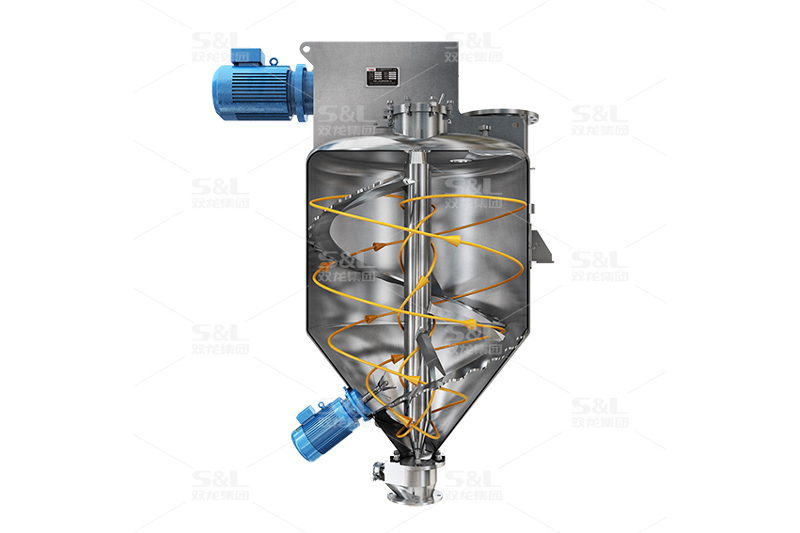

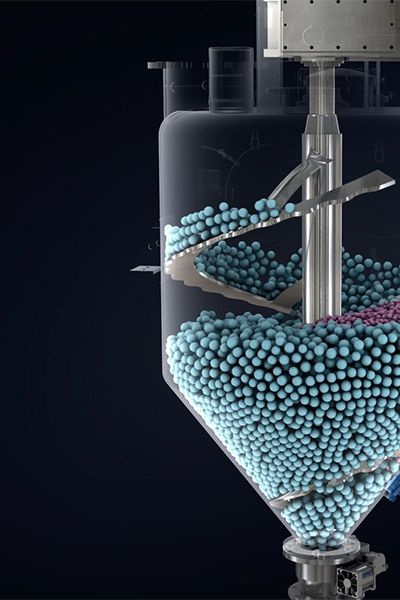

At the core of the mixer's design is a vertical mixing spiral, which initiates a sophisticated three dimensional flow pattern. This dynamic movement creates a helical upward flow along the outer edges of the mixing chamber, paired with a simultaneous downward flow at the center. This design ensures thorough, efficient, and uniform mixing of materials, regardless of complexity or composition.
Applications

+

The S&L Vertical Ribbon Mixer is a versatile and reliable solution designed for efficient mixing and blending across a wide range of industries. Its advanced design and adaptability make it suitable for handling diverse applications, including:

● Food Industry: Ideal for blending dry ingredients, spices, additives, and other food-gradepowders, ensuring consistency and quality in food production.

● Chemical Industry: Perfect for mixing chemical powders, granules, and formulations,enhancing uniformity and performance in various chemical products.

● Bioproducts Sector: Supports the production of bio-based materials by ensuring precise and homogenous mixing of components.

● Cosmetics Industry: Efficiently mixes powders and fine ingredients used in cosmetic formulations, such as powders, pigments, and specialty blends.

● Battery Manufacturing: Optimized for the blending of materials like powdered metals and additives, crucial for battery production and advanced energy solutions.

● Other Industries: Well-suited for applications in pharmaceuticals, new material development,ceramics, and other specialized fields requiring uniform and precise mixing.

The S&L Vertical Ribbon Mixer's robust design and adaptability ensure it can meet the unique demands of a variety of industries, offering high performance, consistency, and reliability.
Applicable Materials

+

The S&L Vertical Ribbon Mixer is engineered for exceptional versatility, making it an ideal choice for processing a wide range of materials. Its advanced mixing technology ensures uniformity and precision across various material types, including:

Dry Powders: Perfect for handling fine and coarse powders used in industries such as food, pharmaceuticals, chemicals, and cosmetics. The mixer ensures consistent blending, critical for achieving uniform product quality.

Solids and Granules: Efficiently processes solid particles and granular materials, ensuring even distribution of components, essential for applications like chemical compounds, fertilizers, and food additives.

Liquids and Pastes: Capable of blending viscous materials, such as paints, adhesives, and creams, with optional features like heating, cooling, or vacuum settings to enhance performance.

Specialized Materials: Supports the mixing of complex and sensitive materials, such as powdered metals, ceramics, and advanced composites, ensuring precision and consistency in production.

This mixer's adaptability and robust construction make it suitable for a variety of materials, offering reliable performance for industries with diverse and demanding processing requirements.
Additional Functions

+

The S&L Vertical Ribbon Mixer is designed to accommodate a range of advanced functionalities, enhancing its versatility and performance for specialized applications.
Key additional functions include:

● Pressure/Vacuum Blending:

█ Pressure Blending: Enables controlled pressurization within the mixing chamber, enhancing the integration of materials, especially in high-density or high-viscosity applications.

█ Vacuum Blending: Facilitates the removal of air and gases during mixing, improving product density, eliminating voids, and preventing contamination, ideal for sensitive formulations.

● Reacting:

█ Supports chemical or physical reactions directly within the mixing chamber, reducing the need for separate reaction vessels. This capability is particularly valuable in industries like chemicals, pharmaceuticals, and materials science, where in-situ processing enhances efficiency and product uniformity.

● Agglomerating:

█ Promotes the controlled formation of granules or agglomerates by combining fine particles under specific conditions, such as moisture addition or binder incorporation. This function is essential for applications in food processing, pharmaceuticals, and chemical manufacturing.

With these advanced features, the S&L Vertical Ribbon Mixer offers a comprehensive solution for complex production processes, meeting the diverse needs of modern industries.
